UV Curing System Features
1.High light intensity;
2.Light intensity auto adjust according printer speed;
3.Light intensity and be adjust and display;
4.Light can on/off part or full according different print size;
5.Temperature display and over temperature control;
6.Single UV lamp can be controlled independently;
7.Warning while short circuit;
8.Over temperature alarm, assure the products work well

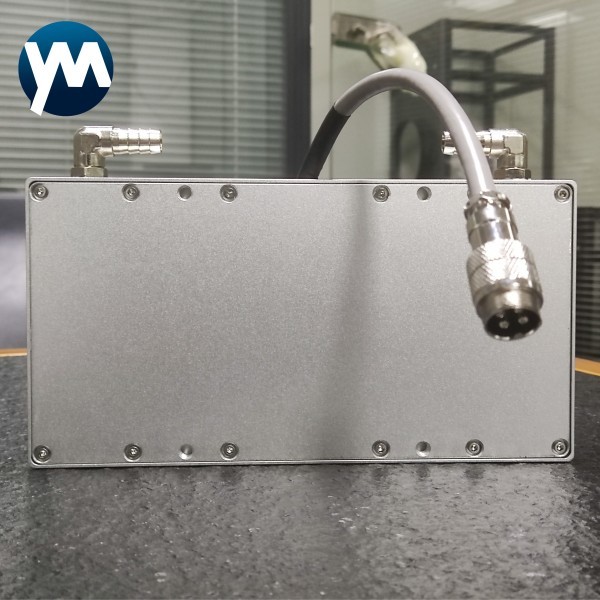

Specification of UV LED Curing System
| Item | UV LED Curing System 400W for printing |
| Power | 400W |
| Color | UV |
| Diode type | 3535 smd type |
| Size | 230mm*120mm*50mm |
| Luminous Size | 170mm*95mm |
| Chip Material | LG,Seoul,Epileds |
| Wavelength | 365nm,385nm,395nm,405nm |

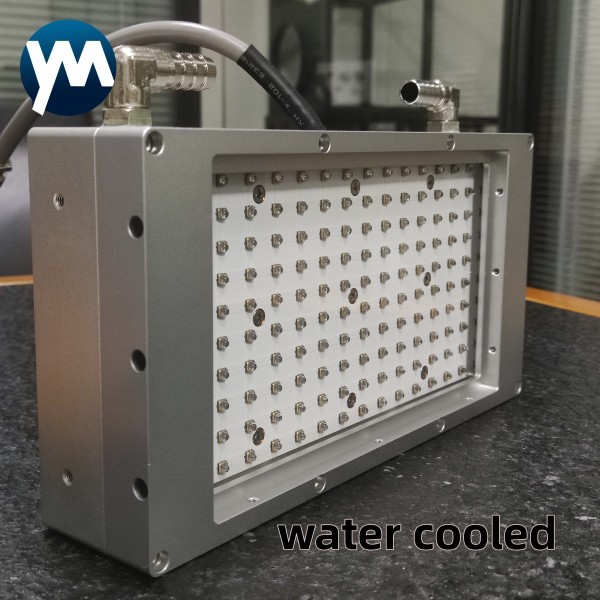

| Cooling scheme | Water-cooled |
| Application | Apply in various printing industries, painting, and glue. |
| optional | Single lamp, lamp + power supply, lamp + power supply + water tank |
| Lifespan (hours) | 10000 hours |
| Warranty | 1 year |
| Place of Origin | Shenzhen, Guangdong, China |
Application
UV lamps are widely used in printing, plastic, wood, footwear, glass, handicraft polishing, painting and other fields.
1. In terms of spraying: ordinary phone case spraying, cosmetic case spraying, Plastic spraying of MP3 small
household appliance shells and other materials
2. Printing: Screen printing, offset printing, 5-color printing, etc. Use UV curing lamps to dry UV ink.
3. In the footwear industry, it is the use of ultraviolet radiation to illuminate the material on the sole of the shoe,
causing a chemical reaction and creating a good affinity between the adhesive and the sole and upper.
FAQ
Q1:Do you have your own factory?
A1:Yes! We have our own factory in Shenzhen. We have been producing UV LED products for eight years.
Q2:Do you support OEM,ODM service?
A2: Yes! We support OEM / ODM service to customized.
Q3:What is your main products?
A3:UV LED Lamp Bead; UV LED Module; UV LED Single Light.etc.
Q4:Do you have any MOQ limit for led light order?
A4:No! One is also acceptable.
Q5:What is your usual payment terms for orders?
A5:T/T,D/P D/A,Credit card,PayPal.We accept multiple payment methods.
Q6:How long does it take for my order to be shipped?
A6:It usually takes 3-7 days, depending on the quantity.
If you have other needs, please contact us to provide you with the best solution.
Thank you for your attention.
