Curing Lamp 60W UV LED Module 365nm 385nm 395nm 405nm High Power Chip

  • 1
  • 2

Brand Name : YM

Model Number : UV Light Module 5635

Certification : High-tech Enterprise Certificate

Place of Origin : CHINA

MOQ : Negotiate

Price : Negotiate

Payment Terms : T/T

Supply Ability : 100000

Delivery Time : 7-10 work days

Packaging Details : Carton

Product Name : UV Light Module 5635

Power : 60W

Module Size : 56.5mm*35mm*2.0mm

Luminous Size : 56.5mm*10mm

Voltage : 34-38V

Current : 1.-1.4A

Contact Now

60W UV Light Module Curing Lamp UV High Power Chip 365nm 385nm 395nm 405nm

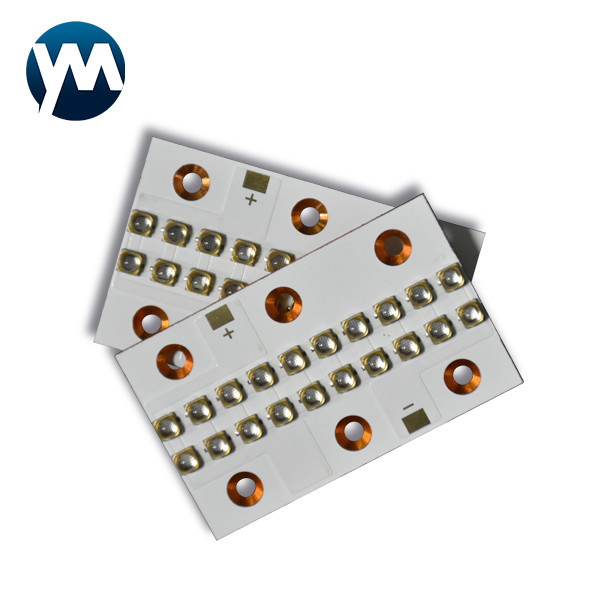

Description of UV Light Module:

The UV Light module can be water-cooled or air-cooled.
Various powers, sizes and circuits can be customized according to your requirements, including mixed wavelengths.
UV LED lamp beads are consumables. Please use the lamp beads reasonably to extend the service life,
so as not to burn the lamp beads when the current and voltage are too high.
It is suitable for curing of various UV printing industries, paints, UV inks, UV glues, and touch screens.
If you have any needs, you can contact us directly by email.
Product Name UV Light Module 5635
Power 60W
Color UV
Number of lamp beads 20 pcs
Diode type 3535 smd
Lens Material of Diode Silica gel or quartz
View Angle of the Lens 60, 120 degree

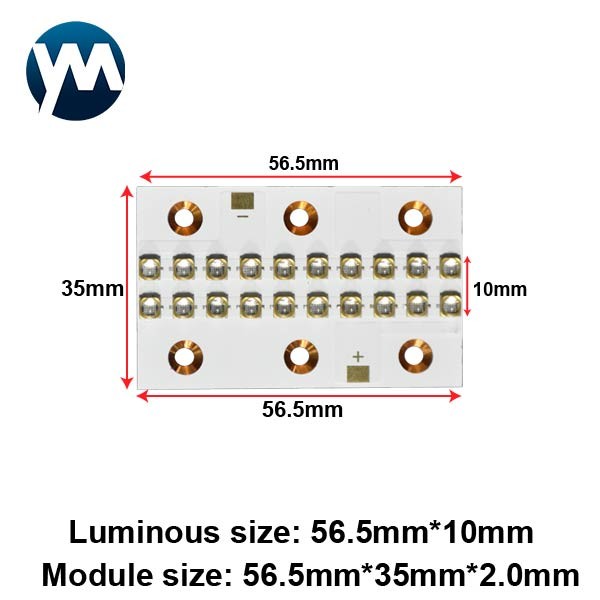

Module size 56.5mm*35mm*2.0mm
Luminous Size 56.5mm*10mm
Wavelength 365nm,385nm,395nm,405nm
Voltage 34-38V
Current 1-1.4A
Chip Material LG,Seoul,Epileds
Encapsulation process High temperature quartz lens package
Module material 2.0mm Copper substrate
Lifespan (hours) 20000-30000
Warranty 2 years
Application Apply in various UV printing industries, painting,
Place of Origin Shenzhen, Guangdong, China


Curing Lamp 60W UV LED Module 365nm 385nm 395nm 405nm High Power ChipCuring Lamp 60W UV LED Module 365nm 385nm 395nm 405nm High Power Chip

Why Choose Us
1) Good Price
We offer the manufacturer's direct selling price.
2) Quality Assurance
We have our own R&D team,Every product has a professional test before shipment.

3) After-sale Service
We provide superior and timely pre-sales advice and after-sales service,

Any questions about UV LED will be answered by a professional engineer in 12 hours.

Feature of UV Light Module

• High power and efficiency, high reliability

• Long operation lifetime, low light failure

• Environmental protection, energy saving

• Zener diode protection device

If you have other needs, please contact us to provide you with the best solution.

Thank you for your attention.
